Dishes Still Dirty? Why a Split Lower Spray Arm is Ruining Your Wash Cycle.
Share
You run a full, heavy-duty wash cycle, wait for the heated dry to finish, and open your dishwasher expecting sparkling clean plates. Instead, you find a gritty, sandy film of food particles baked onto your glasses, and the bowls on the bottom rack look like they were barely touched by water. 🍽️
Before you rush out to buy expensive specialized detergents or assume your dishwasher's main pump is dying, the real culprit is likely sitting right at the bottom of the tub. Your lower spray arm is the mechanical heart of the wash cycle, responsible for blasting water upward and spinning rapidly to cover every square inch of the rack. When it fails, your dishwasher essentially becomes a very expensive rinsing box.
Here is how a hidden split seam or clogged jet stops your spray arm from spinning, and how to verify if it is time for a quick, tool-free replacement.
🪓 The Split Seam: The Hidden Killer of Water Pressure
Most modern lower spray arms are constructed from two heavy-duty plastic halves that are heat-fused together at the factory. Over years of exposure to boiling water temperatures, harsh detergents, and the intense hydraulic pressure of the wash pump, that factory weld line can split open.
When a spray arm splits along its edge, it creates a massive structural leak. Instead of forcing water out of the tiny targeted jet nozzles at high velocity, the water lazily dumps out of the side crack. This drops the internal pressure to zero. Because the arm relies on the angled force of the water jets to make it spin like a lawn sprinkler, a split seam stops the arm from rotating entirely. It stays stuck in one position, spraying the exact same spot for the entire 2-hour cycle.
⚠️ 3 Signs Your Lower Spray Arm Has Failed
If your dishes are coming out dirty, inspect the lower wash arm for these three common physical warning signs:
- Clogged Jet Holes: Take a close look at the tiny nozzles along the top of the arm. If you see white calcium hard-water scaling, small seeds, or plastic film melting over the holes, the water path is choked. Clean water cannot exit, and the trapped pressure will eventually crack the arm.
- Melted or Warped Plastic: If the bottom heating element in your dishwasher runs too hot, or if the spray arm accidentally gets pushed downward, the plastic housing can warp or melt. Even a tiny bend ruins the balance, preventing it from spinning freely on its center hub.
- The Door Test Failure: Open your dishwasher mid-cycle and note the exact direction the lower arm is pointing. Close the door, let it run for two minutes, and pop it open again. If the arm is pointing in the exact same direction, it is mechanically jammed or losing pressure through a split.
🎯 Restore Perfect Cleaning Power for Less
Replacing a lower spray arm is one of the easiest DIY repairs you can perform—it requires absolutely zero tools and snaps into place on the center supply tube in under 60 seconds. However, you don't need to pay premium appliance distributor prices or wait weeks for backordered parts just to get your kitchen running smoothly again.

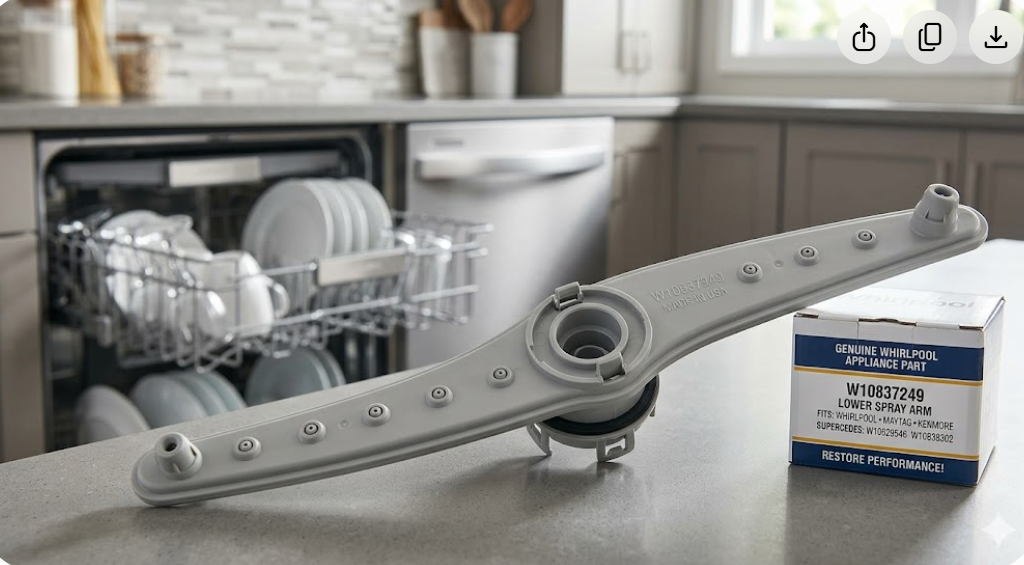

At jcrozbdeals LLC, we specialize in sourcing authentic, premium appliance components, original equipment liquidations, and pristine overstock inventory. Our featured Lower Spray Arm Assembly (Part #W10837249) is a brand new, factory-spec direct replacement designed for absolute compatibility with major Whirlpool, Maytag, and Kenmore dishwasher models.
This high-quality replacement fully supersedes and replaces older part numbers W10629546 and W10838302, featuring reinforced heat-sealed seams and precision-molded jet nozzles to instantly restore factory-level water pressure and spinning momentum. Get your dishes spotless again on the very first rinse without the commercial appliance store markup. 🧼
Fix your wash cycle today: Don't let dirty dishes pile up in the sink. Head over to our store to check our current live inventory and secure your Fit for Whirlpool W10837249 New Lower Spray Arm assembly right now.
