Dryer Tumbles But No Heat? How to Diagnose a Burned-Out Heating Element.
You load up your dryer, twist the dial, press start, and walk away. An hour later, you open the door expecting fluffy, warm laundry—only to find a tangled, freezing cold pile of soaking wet clothes. 🌀
When a dryer spins and tumbles perfectly but refuses to generate a single bit of heat, it is incredibly frustrating. The good news is that you don't need to replace the entire appliance, and you don't need to pay a professional repair technician a hefty service fee just to diagnose it.
Here is how to safely troubleshoot a dryer that won't heat and determine if your heating element has burned out.
🔥 How a Dryer Heating Element Fails
Inside an electric dryer sits a metal chamber housing a long, coiled wire made of a nickel-chrome alloy (nichrome). When electricity passes through this coil, electrical resistance causes the wire to glow red-hot, warming up the air that circulates through your clothes.
Think of it exactly like a giant toaster filament. Over years of thermal contraction and expansion, that metal coil grows weak. Eventually, the wire brittle-snaps, breaking the electrical circuit completely.
A classic heating element failure. Notice the gap where the coiled wire has overheated, melted, and snapped apart.
🔍 The 2-Step Diagnostic Check
Before you take anything apart, always unplug your dryer or flip the circuit breaker off! Working around high-voltage 240-volt appliance wiring requires absolute safety.
1. The Visual Break Test

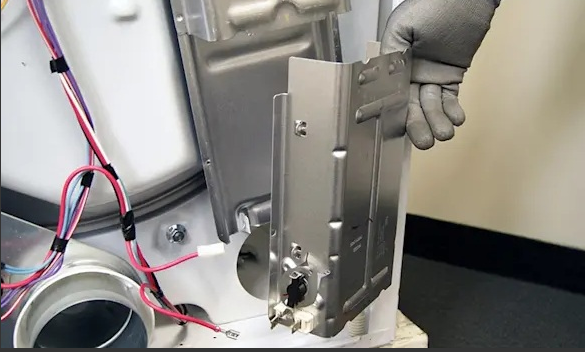

Once you slide the dryer cabinet open or remove the rear access panel (depending on whether you have a Whirlpool, Samsung, LG, or Frigidaire model), locate the metal heating element tube. Look closely at the coils inside using a flashlight. If you see a spot where the coiled wire has split in half or is touching the metal grounding shield, the element is permanently dead.
2. Testing for Continuity
If the coil looks physically intact but stays cold, it could be a blown thermal fuse or a dead thermostat. If you own a basic digital multimeter, switch it to the **Ohms setting (Ω)**. Touch one probe to each of the two metal terminal leads on the heating element assembly.
- Good Element: Should read between 15 and 30 Ohms of resistance.
- Dead Element: Shows "OL" (Open Line) or infinity, meaning the circuit is broken inside and can no longer conduct electricity.
⚠️ The #1 Cause of Premature Element Failure: Restricted Airflow
If you find out your element is burned out, don't just drop a new one in without fixing the root cause. Heating elements don't usually die just from old age—they burn out because **your dryer vent lines are clogged with lint.**
When lint chokes off the exhaust duct, the intense heat cannot escape the heating chamber. The temperature spikes past safe operational limits, causing the nichrome coil to literally melt itself down. Always clean your exterior vent pipe from the wall to the outside of your home whenever you install a new heating component!
🎯 Grab Genuine OEM Heating Elements for Less
Don't risk your home's safety by installing low-grade, generic aftermarket heating coils that use thin, cheap wire alloys—they often burn out again within a few months or pose severe fire hazards. At jcrozbdeals LLC, we specialize in sourcing genuine, original equipment manufacturer (OEM) open-box liquidation inventory, pristine factory overstocks, and fully inspected appliance component pulls.
Every single heating element assembly, high-limit thermostat, and thermal fuse array that clears our warehouse undergoes a strict continuity test and structural wire inspection. Get your laundry room back up and running with a safe, reliable factory-spec repair without the massive appliance repair company pricing markups. 🧺
Fix your cold dryer today: Browse our current live inventory of Genuine OEM Dryer Heating Elements & Thermal Restraints to find an exact factory fit for your appliance model.
