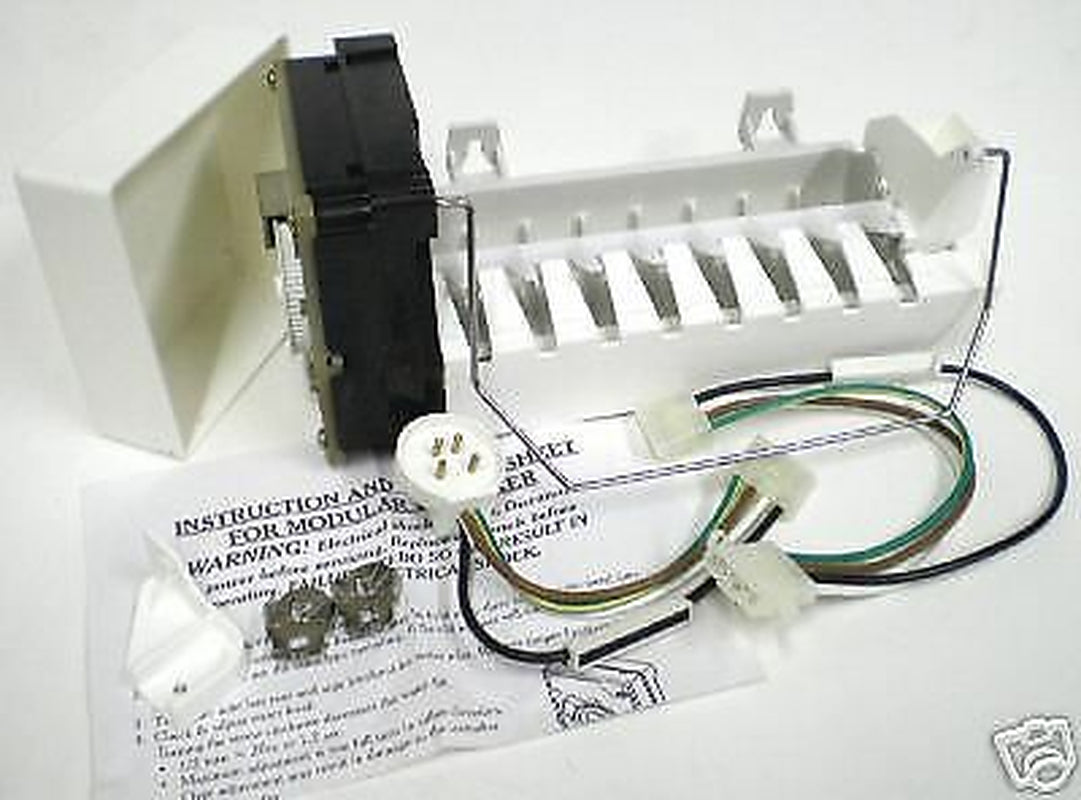

Replacement moduler icemaker part number IM943
Includes:
a Cord that has a round 4 pin connection and measures 7.25" long
a Cord that has a flat rectangle 4 pin connection and measures 10.5" long
a Shutoff Bail Arm
One Level Plate (Plastic)
2 Mounting Clips
Instructions
The cord plugs into the head of the icemaker then into the refrigerator. Both cords are fuse protected. In some cases you may have to use your old cord. The cord removes from the icemaker by pushing on the spring clip and pulling it out from the socket.
It has a ice thickness control by turning a plastic screw on the side of the head.
This icemaker is designed for replacement only and does not include icemaker valve or bucket.
Replacement for numbers 4317943, 626633, 626636, 4210317, 4211173, 4317943R, 480616, 480617, 482014, 482015, 482016, 482017, 482018, 482019, 482394, 482433, 482990, 625601, 625603, 625610, 625611, 625622, 625625, 625653, 625656, 625660, 626002, 626201, 626237, 626366, 626461, 626489, 626608, 626609, 626626, 626636, 626670, 626687, 627572, 68972-4, 797991, 8114, 833701, 978552, 978553, 978556, M626687, W10122496, W10190952, W10281545. PS358591 and AP2984633
Designed to fit specific Whirlpool manufactured refrigerator models including Kitchenaid, Roper and some Kenmore models.
Send us your refrigerator model number and we will verify if this is the correct fit for it.

Product Details

Brand	Supco
Color	White
Manufacturer	Supco
Product Type	Icemaker
Mpn	IM943
